HOT PRESSED GRANITE BLADE
SURAN
0302

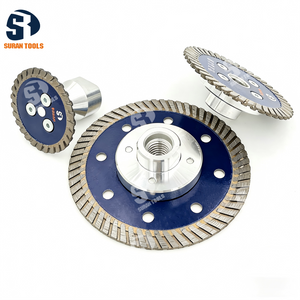

The SURAN Continuous Turbo Rim Diamond Blade is ideal for fast and clean cutting applications including masonry and concrete materials.
A high concentration of premium industrial diamonds bonded in a complex diamond matrix yields a blade that cuts cooler -- 3x longer, 30% quicker and cleaner than standard diamond blades.
Cut wet or dry for increased versatility using an angle grinder.
Ideal for general purpose cutting in masonry, brick, block and concrete
Premium-quality industrial diamonds provide quick and clean cuts
Complex diamond matrix bond retains diamond abrasive for extended cutting life
Use wet or dry for increased versatility
Balanced blade provides vibration-free cuts for optimum cut cleanliness
For use on angle grinders with a maximum RPM of 13,300
Blade has a 7/8-in arbor; a 5/8-in bushing is included
Item No. | Outer Diameter | Hole Diameter | Segment Dimension | |
inch | mm | mm | ||
0302105 | 4" | 105 | 16/20/22.23 | 2.0x10 |
0302110 | 4.3" | 110 | 16/20/22.23 | 2.0x10 |
0302115 | 4.5" | 115 | 20/22.23 | 2.0x10 |
0302125 | 5" | 125 | 20/22.23 | 2.2x10 |
0302150 | 6" | 150 | 20/22.23 | 2.2x10 |
0302180 | 7" | 180 | 22.23/25.4/30 | 2.4x10 |
0302200 | 8" | 200 | 22.23/25.4/30 | 2.6x10 |
0302230 | 9" | 230 | 22.23/25.4/30/50 | 2.6x10 |
0302250 | 10" | 250 | 22.23/25.4/30/50 | 3.0x10 |
0302300 | 12" | 300 | 22.23/25.4/30/50 | 3.2x10 |
0302350 | 14" | 350 | 22.23/25.4/30/50 | 3.2x10 |
0302400 | 16" | 400 | 22.23/25.4/30/50 | 3.4x10 |
