COLD PRESSED GENERAL PURPOSE BLADE
SURAN
0102

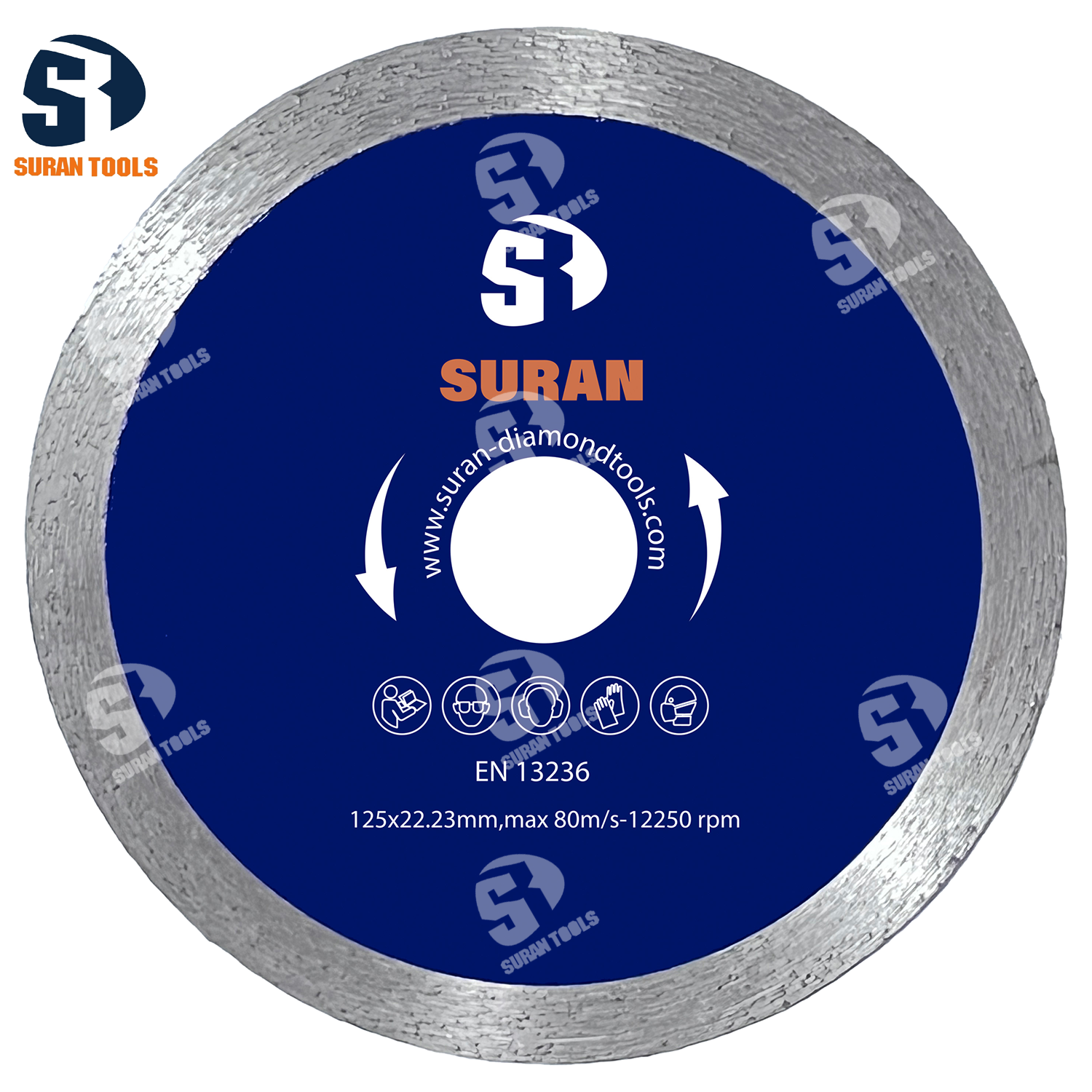

Sintered Wet Cutting Diamond Blade
For use with an angle grinder or circular saw
Ideal for cutting porcelain, tile,ceramic, marble and granite
Item No. | Outer Diameter | Hole Diameter mm | Segment Dimension | |
inch | mm | |||
0102050 | 2" | 50 | 15.88 | 1.6x7.0 |
0102080 | 3" | 80 | 15.88 | 1.6x7.0 |
0102105 | 4" | 105 | 16/20/22.23 | 1.8x7.0 |
0102110 | 4.3" | 110 | 16/20/22.23 | 1.8x7.0 |
0102115 | 4.5" | 115 | 20/22.23 | 1.9x7.0 |
0102125 | 5" | 125 | 20/22.23 | 2.0x7.0 |
0102150 | 6" | 150 | 20/22.23 | 2.0x7.0 |
0102180 | 7" | 180 | 22.23/25.4/30 | 2.2x7.0 |
0102200 | 8" | 200 | 22.23/25.4/30 | 2.4x7.0 |
0102230 | 9" | 230 | 22.23/25.4/30/50 | 2.4x7.2 |
0102250 | 10" | 250 | 22.23/25.4/30/50 | 2.8x7.5 |
0102300 | 12" | 300 | 22.23/25.4/30/50 | 3.2x7.5 |
0102350 | 14" | 350 | 22.23/25.4/30/50 | 3.2x7.5 |
0102400 | 16" | 400 | 22.23/25.4/30/50 | 3.4x7.5 |
Sintered Wet Cutting Diamond Blade
For use with an angle grinder or circular saw
Ideal for cutting porcelain, tile,ceramic, marble and granite
Item No. | Outer Diameter | Hole Diameter mm | Segment Dimension | |
inch | mm | |||
0102050 | 2" | 50 | 15.88 | 1.6x7.0 |
0102080 | 3" | 80 | 15.88 | 1.6x7.0 |
0102105 | 4" | 105 | 16/20/22.23 | 1.8x7.0 |
0102110 | 4.3" | 110 | 16/20/22.23 | 1.8x7.0 |
0102115 | 4.5" | 115 | 20/22.23 | 1.9x7.0 |
0102125 | 5" | 125 | 20/22.23 | 2.0x7.0 |
0102150 | 6" | 150 | 20/22.23 | 2.0x7.0 |
0102180 | 7" | 180 | 22.23/25.4/30 | 2.2x7.0 |
0102200 | 8" | 200 | 22.23/25.4/30 | 2.4x7.0 |
0102230 | 9" | 230 | 22.23/25.4/30/50 | 2.4x7.2 |
0102250 | 10" | 250 | 22.23/25.4/30/50 | 2.8x7.5 |
0102300 | 12" | 300 | 22.23/25.4/30/50 | 3.2x7.5 |
0102350 | 14" | 350 | 22.23/25.4/30/50 | 3.2x7.5 |
0102400 | 16" | 400 | 22.23/25.4/30/50 | 3.4x7.5 |
